Tsawg zaus Hnub Ci Inverter 10-20kw
Khoom Parameters
| Qauv: LFI | 10 KW | 15 KW | 20 KW | |
| Rated zog | 10 KW | 15 KW | 20 W | |
| Roj teeb | Rated Voltage | 96VDC / 192VDC / 240VDC | 192VDC / 240VDC | |
| AC Charge Tam sim no | 20A (Max) | |||
| Tsawg Votage Protection | 87VDC / 173VDC / 216VDC | |||
| AC Input | Voltage Ntau | 88-132VAC / 176-264VAC | ||
| Ntau zaus | 45Hz-65Hz | |||
| Tso zis | Voltage Ntau | 110VAC / 220VAC; ± 5% (Inversion hom) | ||
| Ntau zaus | 50 / 60Hz ± 1% (Inversion hom) | |||
| Tso zis Waveform | Pure Sine Wave | |||
| Hloov Sijhawm | ＜4ms (Tswj Load) | |||
| Kev ua tau zoo | 88% (100% resistive load) | ＞ 91% (100% resistive load) | ||
| Tshaj dhau | Tshaj load 110-120%, kawg ntawm 60S pab tiv thaiv overload; Tshaj load 160%, kawg ntawm 300ms ces tiv thaiv; | |||
| Kev tiv thaiv muaj nuj nqi | Roj teeb dhau voltage tiv thaiv, roj teeb nyob rau hauv kev tiv thaiv voltage, Kev tiv thaiv overload, tiv thaiv luv luv, tshaj tiv thaiv kub, thiab lwm yam. | |||
| Ambient Kub rau kev ua haujlwm | -20 ℃ ~ + 50 ℃ | |||
| Ambient Temperature rau Cia | -25 ℃ - + 50 ℃ | |||
| Kev ua haujlwm / khaws cia | 0-90% Tsis Condensation | |||
| Sab nraud qhov ntev: D * W * H (mm) | 555 * 368 * 695 hli | 655 * 383 * 795 hli | ||
| GW (kg) | 110 | 140 | 170 | |
Khoom Taw Qhia
1.Double CPU ntse tswj tshuab, kev ua tau zoo heev;
2. Hnub ci tseem ceeb 、 Daim phiaj fais fab tseem ceeb hom tuaj yeem teeb tsa, daim ntawv thov hloov tau;
3.Ntshuam IGBT module tsav tsheb, inductive load cuam tshuam kuj muaj zog;
4.Chaw tam sim no / roj teeb hom tuaj yeem teeb tsa, yooj yim thiab siv tau;
5.Kev tswj cov kiv cua ntse, muaj kev nyab xeeb thiab txhim khu kev qha;
6.Pure sine yoj AC tso zis, thiab hloov mus rau txhua yam kev thauj khoom;
7.LCD cov khoom siv ntsuas ntsuas hauv lub sijhawm tiag tiag, cov xwm txheej ua haujlwm tau pom meej meej;
8.Output overload, luv Circuit Court tiv thaiv, Roj teeb tshaj voltage / tsawg voltage tiv thaiv, tshaj kub tiv thaiv (85 ℃), AC charge voltage tiv thaiv;
9. Export ntoo rooj plaub, xyuas kom muaj kev nyab xeeb ntawm kev thauj mus los.
Txoj Cai Ua Haujlwm
Hnub ci inverter tseem hu ua lub hwj chim regulator. Feem ntau hais lus, cov txheej txheem ntawm kev hloov DC lub zog rau hauv AC lub zog yog hu ua inverter, yog li lub voj voog uas ua tiav lub inverter muaj nuj nqi kuj hu ua inverter Circuit Court. Cov cuab yeej uas hloov cov txheej txheem yog hu ua lub hnub ci inverter. Raws li cov tub ntxhais ntawm lub inverter ntaus ntawv, lub inverter hloov Circuit Court ua kom tiav lub inverter muaj nuj nqi los ntawm kev conduction thiab kev soj ntsuam ntawm hluav taws xob hloov.

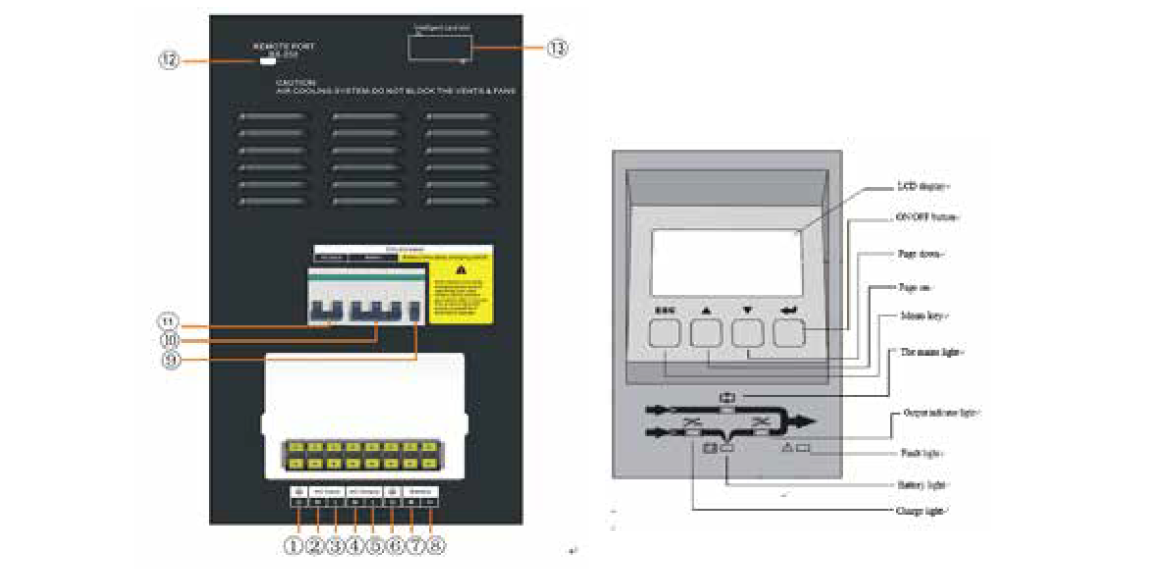

Kev qhia ua haujlwm
①--- Lub mains input av hlau
②--- Lub mains input xoom kab
③--- Lub mains input Hluav taws xob hlau
④ --- Tso zis xoom kab
⑤ --- Cov hluav taws xob xaim hluav taws xob
⑥--- Tso zis hauv av
⑦ --- Roj teeb zoo tswv yim
⑧--- Roj teeb tsis zoo tawm tswv yim
⑨ --- Lub roj teeb them qeeb hloov
⑩--- Roj teeb hloov pauv
⑪--- Lub mains input switch
⑫--- RS232 kev sib txuas lus interface
⑬--- SNMP daim npav sib txuas lus

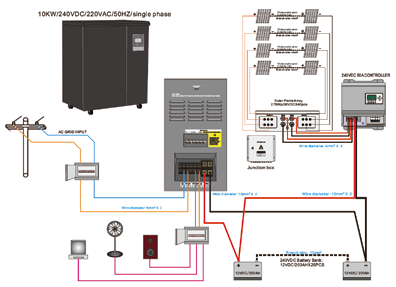

Daim duab kev sib txuas
Siv Cov Lus Ceeb Toom
1. Txuas thiab nruab cov khoom siv nruj raws li qhov yuav tsum tau ua ntawm lub hnub ci inverter ua haujlwm thiab phau ntawv tu. Thaum txhim kho, ua tib zoo xyuas seb cov kab hlau txuas puas ua tau raws li qhov yuav tsum tau ua, seb cov khoom siv thiab cov khoom siv puas tau xoob thaum lub sij hawm thauj mus los, seb lub rwb thaiv tsev puas yuav tsum tau zoo insulated, thiab seb lub hauv paus ntawm lub system ua tau raws li cov kev cai.
2. Ua haujlwm thiab siv nruj raws li cov kev cai ntawm lub hnub ci inverter ua haujlwm thiab phau ntawv tu. Tshwj xeeb tshaj yog ua ntej tig lub tshuab, ua tib zoo saib seb qhov input voltage yog qhov qub. Thaum lub sijhawm ua haujlwm, ua tib zoo saib seb qhov sib txuas ntawm kev hloov pauv thiab tawm puas yog, thiab seb qhov ntsuas ntawm cov ntsuas thiab qhov taw qhia teeb yog qhov qub.
3. Hnub ci inverters feem ntau muaj kev tiv thaiv tsis siv neeg rau qhib Circuit Court, overcurrent, overvoltage, overheating, thiab lwm yam, yog li thaum cov phenomena tshwm sim, tsis tas yuav manually nres lub inverter. Kev tiv thaiv taw tes ntawm kev tiv thaiv tsis siv neeg feem ntau yog teem rau ntawm lub Hoobkas, thiab tsis tas yuav tsum tau hloov kho ntxiv.
4. Muaj qhov hluav taws xob siab nyob rau hauv lub hnub ci inverter txee, tus neeg teb xov tooj feem ntau tsis tso cai qhib lub txee qhov rooj, thiab lub txee lub qhov rooj yuav tsum kaw lub sijhawm zoo tib yam.
5. Thaum chav tsev kub siab tshaj 30 ° C, cov cua kub dissipation thiab txias ntsuas yuav tsum tau coj los tiv thaiv cov cuab yeej tsis ua hauj lwm thiab ua rau lub neej ntev ntawm cov khoom siv.
Kev Tiv Thaiv Kev Tiv Thaiv
1. Tsis tu ncua xyuas seb txoj hlua hluav taws xob ntawm txhua qhov ntawm lub hnub ci hluav taws xob tsawg zaus yog qhov ruaj khov thiab seb puas muaj qhov xoob, tshwj xeeb tshaj yog cov kiv cua, lub hwj chim module, input davhlau ya nyob twg, tso zis davhlau ya nyob twg thiab grounding yuav tsum tau ua tib zoo xyuas.
2. Thaum lub tswb raug kaw, nws tsis raug tso cai pib tam sim ntawd. Qhov laj thawj yuav tsum tau tshawb pom thiab kho ua ntej pib. Kev tshuaj xyuas yuav tsum tau ua raws li nruj me ntsis raws li cov kauj ruam tau teev tseg hauv phau ntawv qhia kev siv hluav taws xob tsawg zaus hnub ci inverter.
3. Cov neeg ua haujlwm yuav tsum tau txais kev cob qhia tshwj xeeb kom muaj peev xwm txiav txim rau qhov ua tsis tau zoo thiab tshem tawm, xws li kev txawj hloov fuses, cov khoom siv thiab cov khoom siv hluav taws xob puas. Cov neeg ua haujlwm tsis tau txais kev cob qhia tsis raug tso cai ua haujlwm thiab ua haujlwm ntawm cov khoom siv.
4. Yog tias muaj kev huam yuaj uas nyuaj rau kev tshem tawm lossis qhov ua rau muaj kev sib tsoo tsis meej, yuav tsum tau ua cov ntaub ntawv ntxaws ntxaws ntawm kev sib tsoo, thiab cov chaw tsim khoom siv hluav taws xob tsawg zaus yuav tsum tau ceeb toom rau lub sijhawm los daws nws.
Khoom siv
Lub tshuab hluav taws xob photovoltaic nyob hauv thaj tsam li 172 square metres ntawm lub ru tsev, thiab tau nruab rau ntawm lub ru tsev ntawm thaj chaw nyob. Lub zog hluav taws xob hloov pauv tuaj yeem txuas rau Is Taws Nem thiab siv rau cov khoom siv hauv tsev los ntawm inverter. Thiab nws yog tsim rau hauv nroog high-rise, multi-storey tsev, Liandong villas, nyob deb nroog, thiab lwm yam.
Peb Qhov Zoo
1. Muaj kev ntseeg siab tsim
Ob chav hloov dua siab tshiab tsim ua rau cov zis ntawm lub inverter zaus mus txog qhovtwg, suab nrov filtering, thiab tsawg distortion.
2. Muaj zog ib puag ncig adaptability
Lub input zaus ntau ntawm lub inverter yog loj, uas ua kom ntseeg tau tias ntau yam roj generators tuaj yeem ua haujlwm ruaj khov.
3. High roj teeb optimization kev ua tau zoo
Txais cov cuab yeej siv roj teeb ntse tswj kom ntev lub neej kev pab cuam ntawm lub roj teeb thiab txo qhov zaus ntawm kev saib xyuas roj teeb.
Advanced thev naus laus zis thev naus laus zis thev naus laus zis thev naus laus zis ua kom lub zog ntawm lub roj teeb, txuag lub sijhawm them thiab ua kom lub neej ntev ntawm lub roj teeb.
4. Kev tiv thaiv zoo thiab txhim khu kev qha
Nrog lub hwj chim-ntawm tus kheej-kev kuaj mob muaj nuj nqi, nws tuaj yeem zam qhov kev pheej hmoo ntawm kev ua tsis tiav uas yuav tshwm sim los ntawm kev phom sij zais ntawm lub inverter.
5. Ua tau zoo IGBT inverter tshuab (Insulated Gate Bipolar Transistor)
IGBT muaj qhov zoo ntawm kev hloov pauv ceev; nws muaj high voltage thiab siab tam sim no kev khiav hauj lwm yam ntxwv; nws txais yuav voltage-hom tsav thiab tsuas yog yuav tsum muaj lub zog tswj me me xwb. Qhov thib tsib tiam IGBT muaj qhov qis qis qis qis, thiab lub inverter muaj kev ua haujlwm ntau dua thiab muaj kev ntseeg siab dua.
Vim Li Cas Xaiv Peb
Q1: Lub hnub ci inverter yog dab tsi thiab vim li cas nws tseem ceeb?
A: Lub hnub ci inverter yog ib qho tseem ceeb ntawm lub hnub ci system thiab yog lub luag hauj lwm rau kev hloov cov tam sim no ncaj qha (DC) tsim los ntawm lub hnub ci vaj huam sib luag rau hauv alternating tam sim no (AC) uas tuaj yeem siv los siv hluav taws xob hauv tsev. Nws ua kom muaj txiaj ntsig zoo ntawm lub hnub ci zog thiab kev sib koom ua ke tsis sib haum nrog cov phiaj xwm siv hluav taws xob lossis cov kab hluav taws xob tawm.
Q2: Peb puas tuaj yeem hloov kho rau cov huab cua sib txawv?
A: Yog, peb lub hnub ci inverters tau tsim los tiv thaiv ntau yam huab cua, nrog rau qhov kub thiab txias, av noo, thiab txawm tias ib nrab ntxoov ntxoo.
Q3: Peb lub hnub ci inverters puas muaj cov yam ntxwv kev nyab xeeb?
A: Yog lawm. Peb lub hnub ci inverters tau tsim nrog ntau yam kev nyab xeeb los tiv thaiv lub cev thiab cov neeg siv. Cov yam ntxwv no suav nrog kev tiv thaiv overvoltage thiab undervoltage, kev tiv thaiv luv luv, tiv thaiv overtemperature, thiab arc fault detection. Cov kev ntsuas kev nyab xeeb built-in no ua kom muaj kev nyab xeeb thiab txhim khu kev lag luam ntawm hnub ci inverters thoob plaws hauv lawv lub neej.
